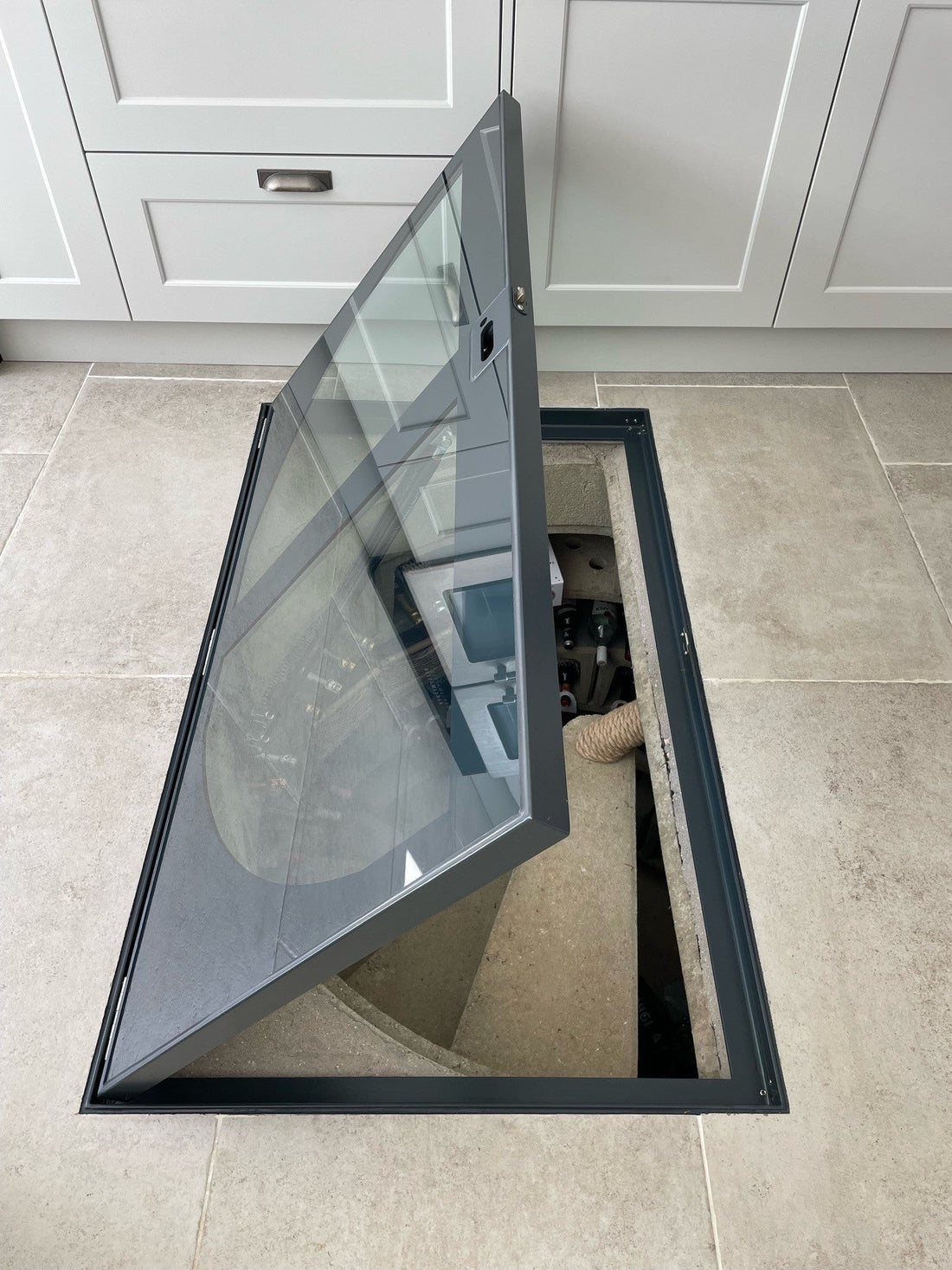

Adding a Glass Wine Cellar Door to an Existing Spiral Cellar
Spiral cellars have become a popular way to add wine storage without giving up living space, and many were fitted with a simple, solid lid at the top — often a plain trap door or a basic glazed hatch that does the job but hides the cellar away completely. If you already have a spiral cellar and have been looking at that lid wondering whether it could be something better, you are not alone. Replacing an existing cellar closure with a hinged glass wine cellar door is one of the most common upgrades people ask us about, because it turns a functional opening into a genuine feature while keeping the floor usable. Every cellar and every opening is slightly different, though, so the notes below are general background rather than a specification for any particular retrofit. The right approach always depends on the specific cellar, the surrounding floor and how the space is used.
Why People Replace an Existing Cellar Lid
The motivations tend to fall into a few familiar groups. Some people want more natural light and a clear view down into the cellar, so a solid hatch is swapped for a walk-on glass panel that lets the spiral staircase and racking show through. Others are chasing convenience: an older lid that has to be lifted awkwardly by hand can be replaced with a hinged design that opens more easily. And for many it is simply about appearance — a flush glass door that sits neatly within the floor finish looks considerably more refined than a dated timber or metal cover.
Whatever the reason, a retrofit is different from a new build in one important way: the cellar and its opening already exist. That means the replacement door has to be designed around what is already there, rather than the opening being formed to suit a standard product. Our team works to understand the existing opening, the floor build-up and the way the cellar is accessed before suggesting how a glass door might fit, so the starting point is always the cellar you already have.
Measuring and Matching an Existing Opening
Because spiral cellars are usually round, the opening at the top tends to be circular or close to it, and a replacement door is generally made to measure to match that shape. This is where a retrofit needs care. The new panel has to relate accurately to the existing structural upstand or frame around the opening, and the way it is supported has to suit how the original cellar was built. Structural engineers typically consider the span, how the panel is carried and the loads a floor is expected to take when advising on a suitable arrangement, so the existing construction is assessed rather than assumed.
There is also a choice of format to make. A full circular lid gives an uninterrupted round view and works well where the whole opening is on display. A semi-circular hinged door, which lifts over one half of the opening, can be more practical where a large single panel would be awkward to raise or would swing into a walkway. Neither is universally better; the right option depends on the individual opening and how the cellar is used day to day. You can see examples of both on our circular wine cellar doors and bespoke spiral cellar door pages.
The Glass, the Frame and Everyday Safety
A walk-on cellar door has to carry the loads expected of a floor while remaining comfortable and safe to use. For that reason, structural floor glass is generally specified as toughened and laminated, with bonded layers so the panel retains integrity even if one layer is damaged. Glass thicknesses vary depending on the project and are determined by a structural engineer, taking into account the size of the opening, the anticipated loading and how the panel is supported. Panels used in structural floor applications may be tested to standards such as BS EN 12600 and related glazing standards, though the applicable standards should always be confirmed for each project.
The walking surface is usually given an anti-slip treatment so the door stays practical underfoot, and Building Regulations guidance offers illustrative reference points for the sort of imposed loads a domestic floor is generally required to comply with. Rather than relying on any single figure as universal, the panel is designed around the specific setting. When properly specified and installed, a glass cellar door can combine the transparency people want with the robustness expected of a floor — but that outcome depends on getting the specification right for the individual cellar, which is exactly why a retrofit benefits from being assessed on its own terms.
How the New Door Will Open
The mechanism is worth thinking about early, because a glass panel is heavy and the way it opens shapes how the cellar feels to use. Many hinged cellar doors use a gas strut hinge, which stores lifting force to counterbalance the weight of the glass and aims for smooth, single-handed operation. Gas strut specification depends on the panel size, its weight and the geometry of the opening, so the struts are matched to the particular door rather than fitted to a fixed formula. Where convenience or accessibility matters most, an electric or motorised option can be considered, with the panel raised and lowered at the touch of a button; electric systems are specified per project based on the size and weight of the glass panel.
For a retrofit, part of the conversation is simply how the new mechanism sits within the existing opening and floor. A lockable or secured lid, sensible use and awareness of the open panel all form part of using the cellar safely once the door is in place. If you would like a sense of what is involved before you commit, our installation guide walks through the general principles, and our wine cellar door FAQs answer many of the questions that come up when people are planning an upgrade.
Interested in a Glass Floor for Your Property?
If you're considering a structural glass floor, wine cellar door, or glass well cover for your home or commercial project, we'd love to help. At Glass Floor Systems, we're happy to discuss the general options relevant to your project without any obligation. Browse our product range or get in touch — our team is always happy to talk through your ideas.
Please note: this article is intended as general background information only and does not constitute technical, structural, or legal advice. Requirements, standards and specifications vary depending on the specific project, application, location and building type. Always seek advice from a qualified structural engineer and consult your local building control authority for guidance specific to your project.
