Circular Hinged Glass Wine Cellar Door | Spiral Cellar Hatch

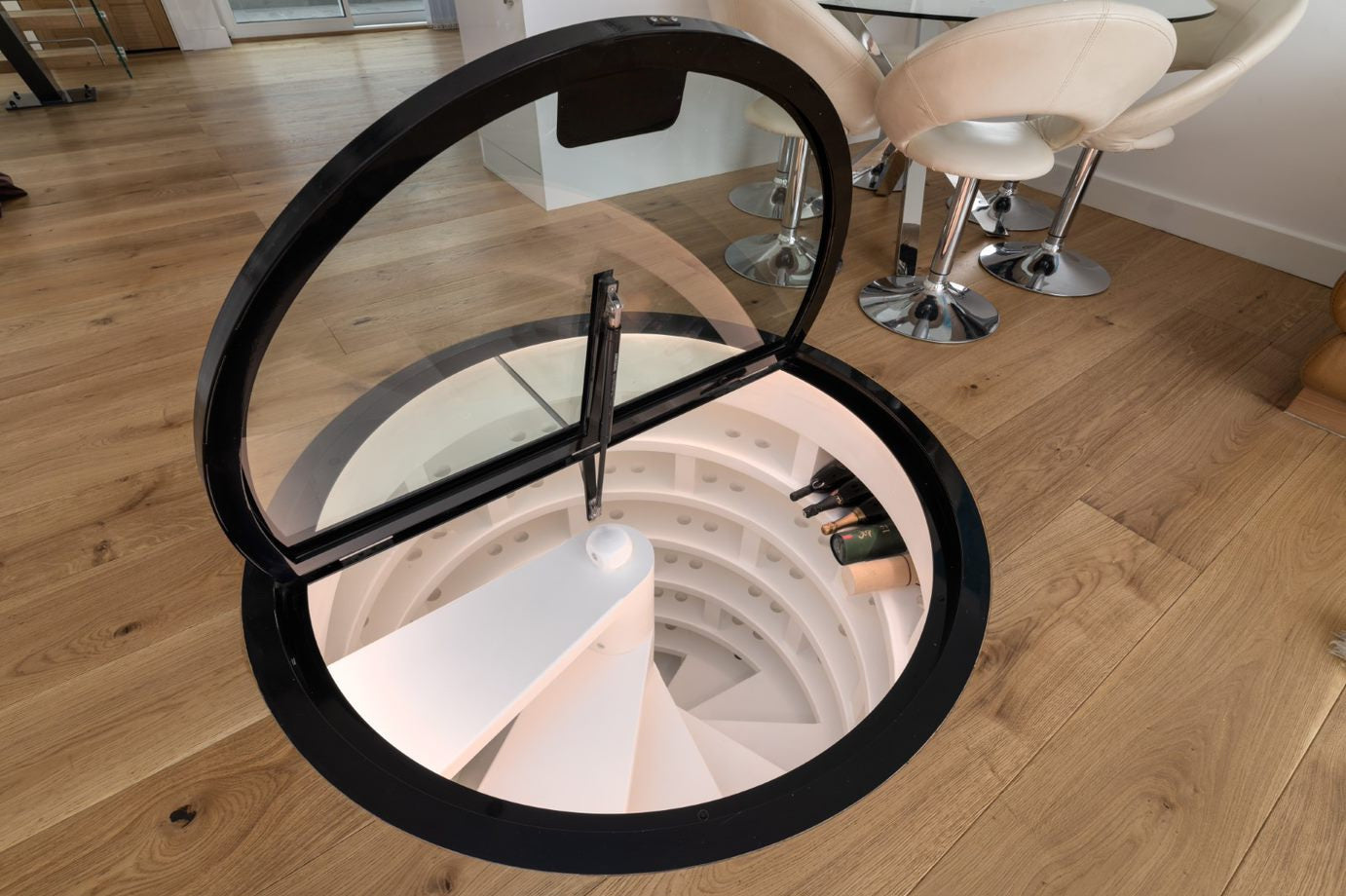

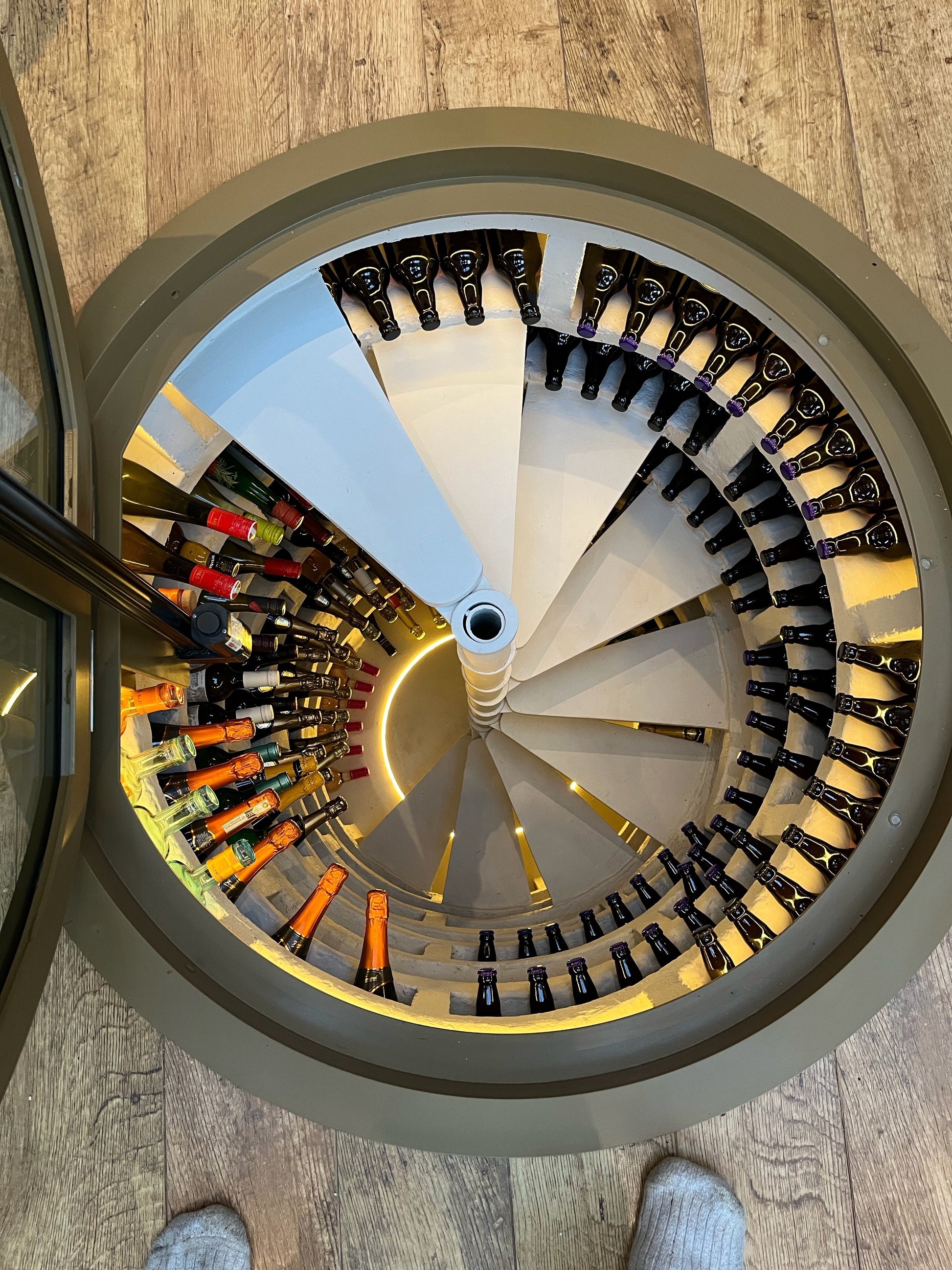

Enhance your home with our stunning circular wine cellar door, also known as a spiral cellar glass hatch. This unique walk-on glass system is the perfect blend of modern design and functionality, custom-made to provide a secure and elegant cover for your spiral staircase.

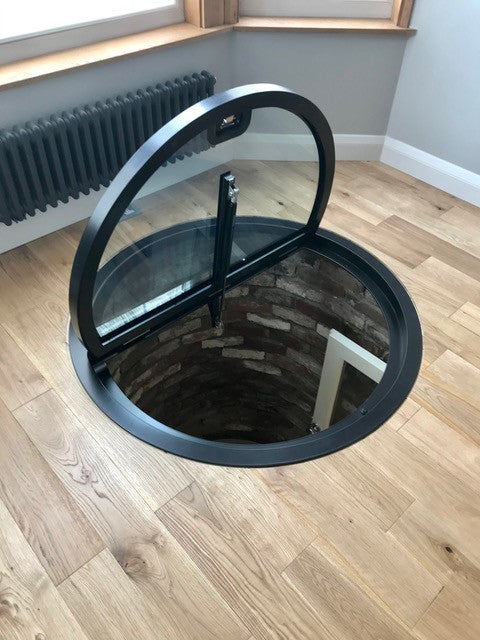

A seamless combination of a hinged glass floor and a sophisticated design, this round hatch is engineered to perfectly fit purpose-built wine cellars and transform a functional opening into a captivating feature.

Key Features

Bespoke Round Design: Every circular door is custom-made to order, with diameters ranging from 800mm to 1500mm.

Hinge Detail: Doors up to 800mm diameter are a full opening design. Larger doors have a fixed section and an approximate 80% opening for added stability.

Certified Safety & Strength: Built with toughened and laminated walk-on safety glass, our units are UKCA certified and meet standards including BS 1090-2 and BS EN 1991-1-1:2002. They are engineered to support a 2.0kN concentrated load and 150kg/sqm.

Effortless & Secure Operation: The unit arrives fully assembled with a gas strut mechanism for easy, assisted opening and secure closing. The door is also lockable as standard for your security. Alternatively supplied in our electric system using 'plug and play' electrics with wall switch and optional remote control pack.

Customizable Finish: The durable steel framework is powder-coated in a standard finish, but various other colours are available to match your specific needs.

Enhanced Safety: The glass is treated with an invisible anti-slip coating (PTV 68), which significantly exceeds industry standards and provides long-lasting grip.

Gas strut units are lockable as standard and our electric system comes with a range of safety features including key lockable wall switch (also disabling remotes), closing sounder (toggle on/off) and a pressure auto-reverse system.

Installation & Lead Times

Lead Time: As a custom-made product, the lead time is approximately 8 weeks from order confirmation.

Installation: The hatch is simple for any competent tradesperson to install, requiring only perimeter screws for a flush, seamless fit. Electrics are all pre-programmed to a control box- plug into a 240v outlet and its up and running!

We ship to UK as standard but regularly ship worldwide by individual arrangement- please contact us for costings. Remote controls cannot be supplied to USA.

Ready to Upgrade Your Cellar?

[Contact Us for a Custom Quote]

Get in touch to discuss your project, request technical drawings, or upgrade to an automated electric system.
