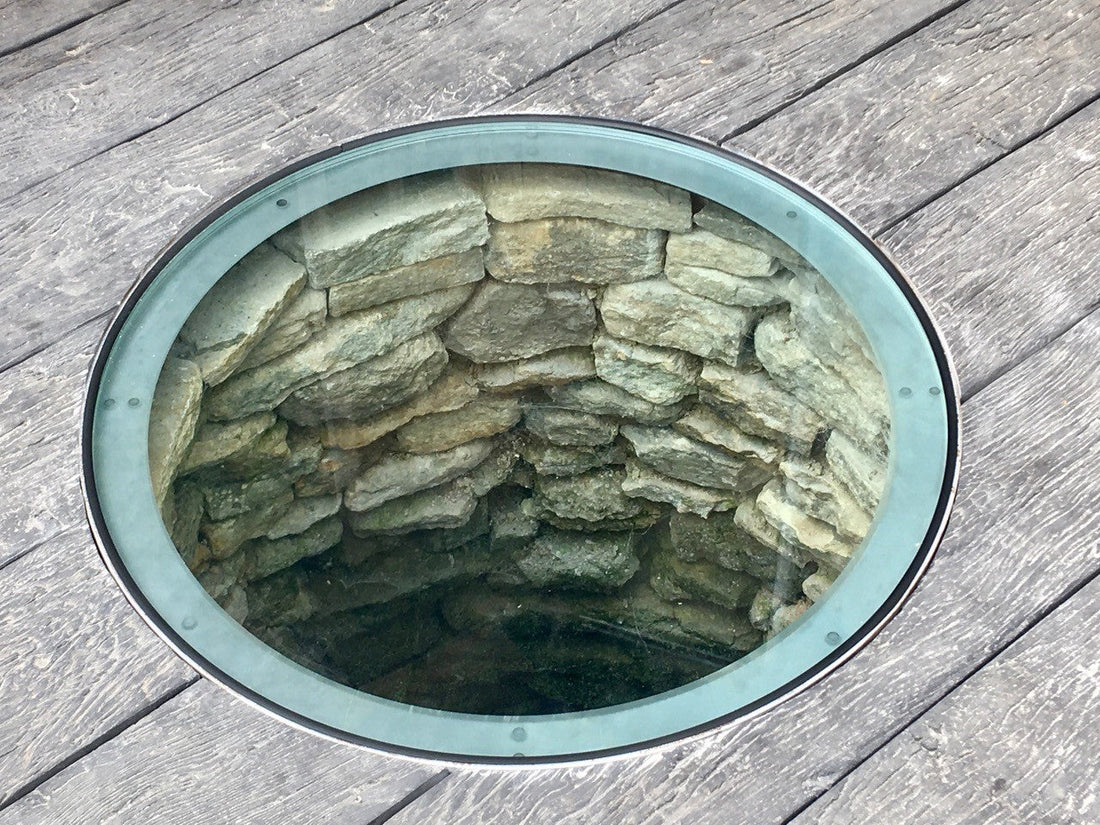

Glass Floors for Light Wells: Bringing Daylight into Lower-Ground Spaces

Light wells have been bringing air and daylight into the lowest parts of British buildings for centuries. With so many basements and lower-ground rooms now being converted into bedrooms, offices and gyms, the light well has become far more than a ventilation shaft — and the thing sitting on top of it matters more than it used to.

Traditionally these openings were left open or covered with a metal grille. Both are compromises. An open well collects leaves, rubbish and rainwater; a grille lets weather in, cuts the light and gives you nothing usable above. A structural glass cover keeps the daylight, closes the opening to the weather, and turns the surface above into part of the garden, courtyard or floor.

Light wells and basement window wells

Worth separating two things that get used interchangeably.

A light well is a vertical shaft or recess, usually open to the sky, allowing daylight to reach windows below ground. You find them in front of basement windows across Victorian and Georgian terraces in London, Bristol, Edinburgh and most historic UK cities.

A basement window well is the smaller sunken area immediately outside a single below-ground window. It performs the same job at a smaller scale, and it is the more common retrofit — a homeowner converting a basement room finds the window opens onto a dark, debris-filled pit and wants the light without the pit.

A walk-on glass well cover suits both. A basement window that looks up through clear glass borrows a surprising amount of daylight compared with one under a grille.

The cover is part of a system, not a lid

This is the point most often missed, and it is where projects go wrong.

A well cover interacts with the drainage in the base of the well, the ventilation the well provides, and the basement window itself. Cover a well that was doing ventilation work and you have changed the conditions in the room below. Cover one whose drainage is marginal and you have changed where the water goes.

Requirements for light, ventilation and escape in habitable basement rooms fall under Building Regulations, and where the room below is habitable rather than storage, the escape question is the one to settle first. Structural engineers and building control will look at how the cover interacts with all of these rather than considering the glass in isolation. Establish it early — it can determine whether the cover should be fixed at all.

Where access into the well is needed for maintenance, drainage or to reach the window, a hinged or removable panel is specified instead of a fixed one. On a habitable basement that is often not optional.

Framed or frameless

A framed cover uses a perimeter support, usually stainless or galvanised steel, set into the surrounding surface. It is the more forgiving arrangement structurally and the easier one to detail against uneven period brickwork.

A frameless approach minimises visible structure for a cleaner finish, at the cost of putting more demand on the surrounding construction to provide support.

Neither is automatically better. The opening size, the condition of the surrounding construction and how the cover will be used decide it, alongside your engineer.

Design considerations

Covering a light well is rarely a drop-in exercise. Every project has its own dimensions, ground levels, drainage and intended use above.

Flush or raised. Some clients want the glass perfectly flush with surrounding paving so it disappears into the patio. Others prefer a slight raised edge for visual definition, or perimeter lighting set into a downstand.

Shape. Many wells are simple rectangles, but Victorian and Edwardian properties frequently have curved, polygonal or stepped wells where successive renovations changed the original opening. Bespoke shapes, including curves and cut-outs around drainage points or existing brickwork, are entirely feasible — it is the main advantage over an off-the-shelf hatch. Each needs careful measurement and templating.

Glass clarity. Low-iron glass gives maximum light transmission and no green cast; standard float glass is fine where the edge is not on show and the budget matters more.

Bear in mind the frame takes up 100mm or more of the finished hole size — relevant on a small window well, where it can be a significant proportion of the opening.

Structural and safety considerations

Glass intended to be walked on is a different product from glazing used in windows or balustrades. Structural floor glass is built up from multiple layers of toughened glass laminated together, giving both strength and post-breakage performance.

Our standard walk-on build-up is 25.5mm toughened and laminated, thicker on longer spans. Floors are designed against Approved Document A and BS EN 1991-1-1, considering both uniformly distributed and concentrated point loads — typically 150kg/m² distributed plus a 2.0kN concentrated load for domestic use, with higher categories for commercial. Glass is manufactured to BS EN 12150 and laminated assemblies to BS EN 14449. Supporting steelwork is made under UKCA certification to BS EN 1090-2.

Anti-slip performance deserves particular attention on a light well, because it is almost always outdoors and therefore almost always wet at some point. Options run from acid-etched finishes and ceramic frit patterns to applied micro-textured treatments. Our invisible anti-slip treatment reaches a Pendulum Test Value of 68 and lasts around five years without affecting clarity — on an external cover that figure matters more than anywhere else on a property.

Where these get used

The most common application is in front of a basement window in a city home, where replacing a metal grille with walk-on glass transforms both the room below and the small courtyard above.

Beyond that: over old coal chutes, cellar entrances and historic vault openings, where the point is to preserve a feature without giving up the space above. In gardens, over decorative wells, water features and planted recesses — a small lit feature glimpsed through flush glass as you cross a patio. And on larger schemes, combined with walk-on glass floor panels to form a wider walk-over spanning multiple supports.

Commercial projects use them too — restaurants converting Victorian basements into dining rooms, retail creating mezzanines, offices opening views between levels.

Talk it through

Send us the dimensions of the well, what is below it and what the surface above needs to take. Our planning guide covers the questions that come up early, and the FAQs answer the common ones on safety and durability.
