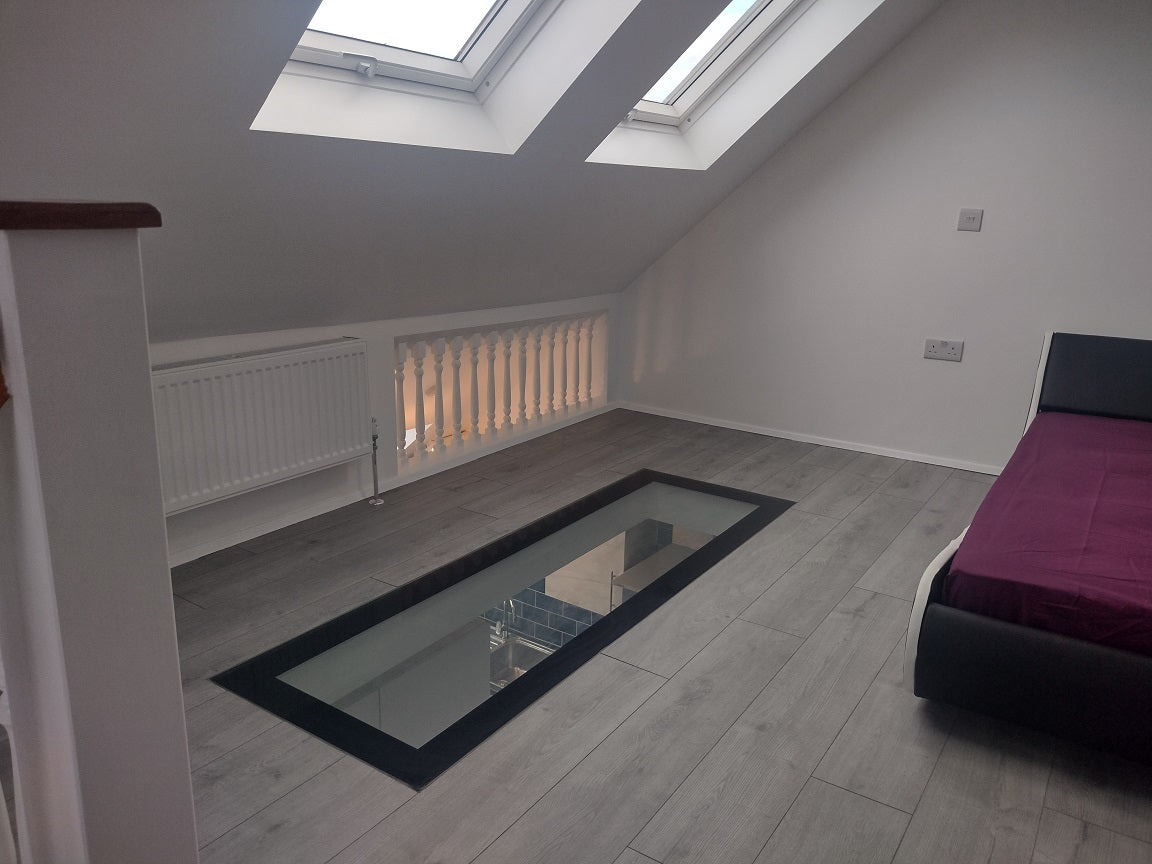

• walk on glass floor panel with painted border in loft conversion

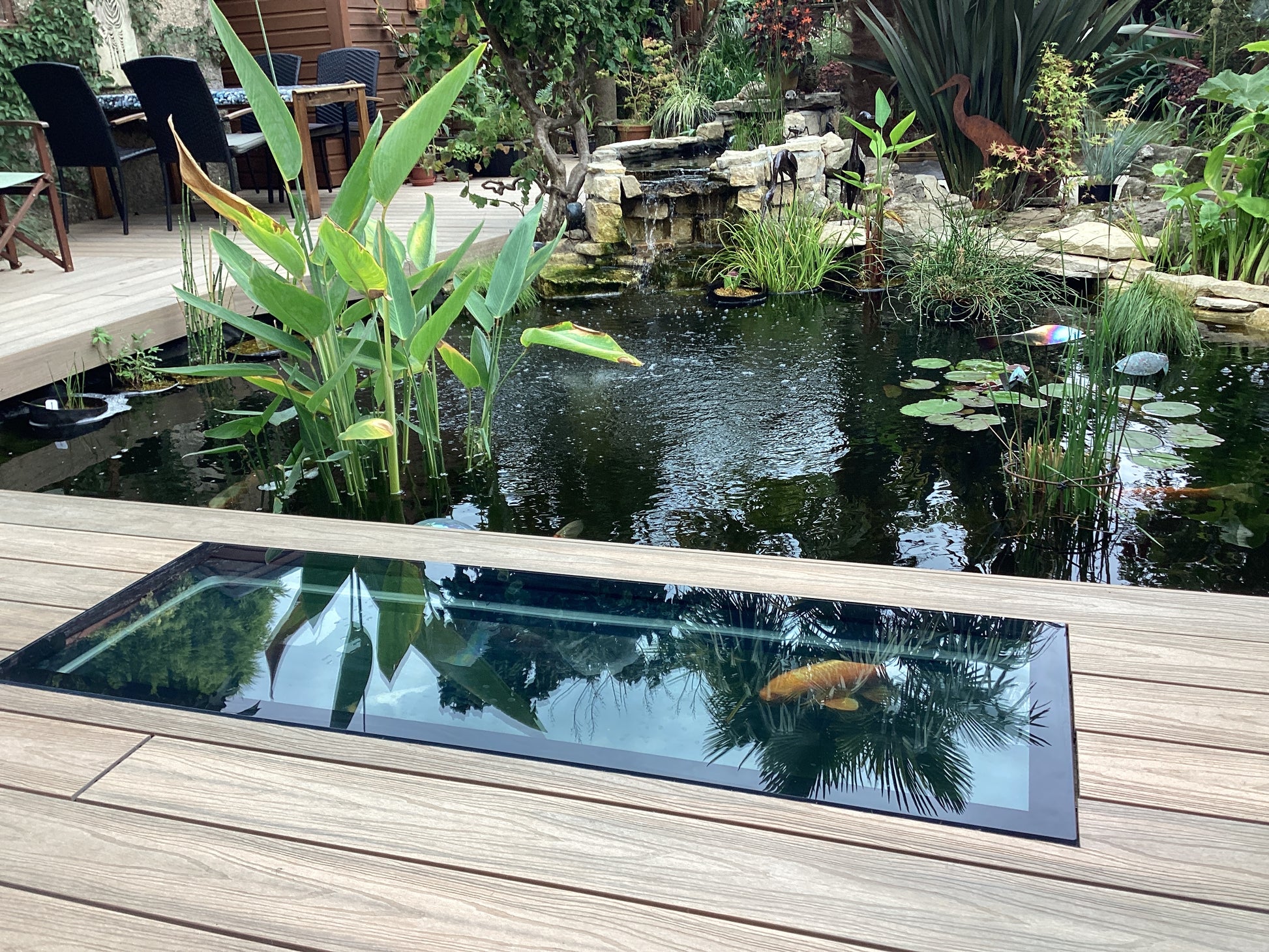

  • glass floor panel over fish pond external

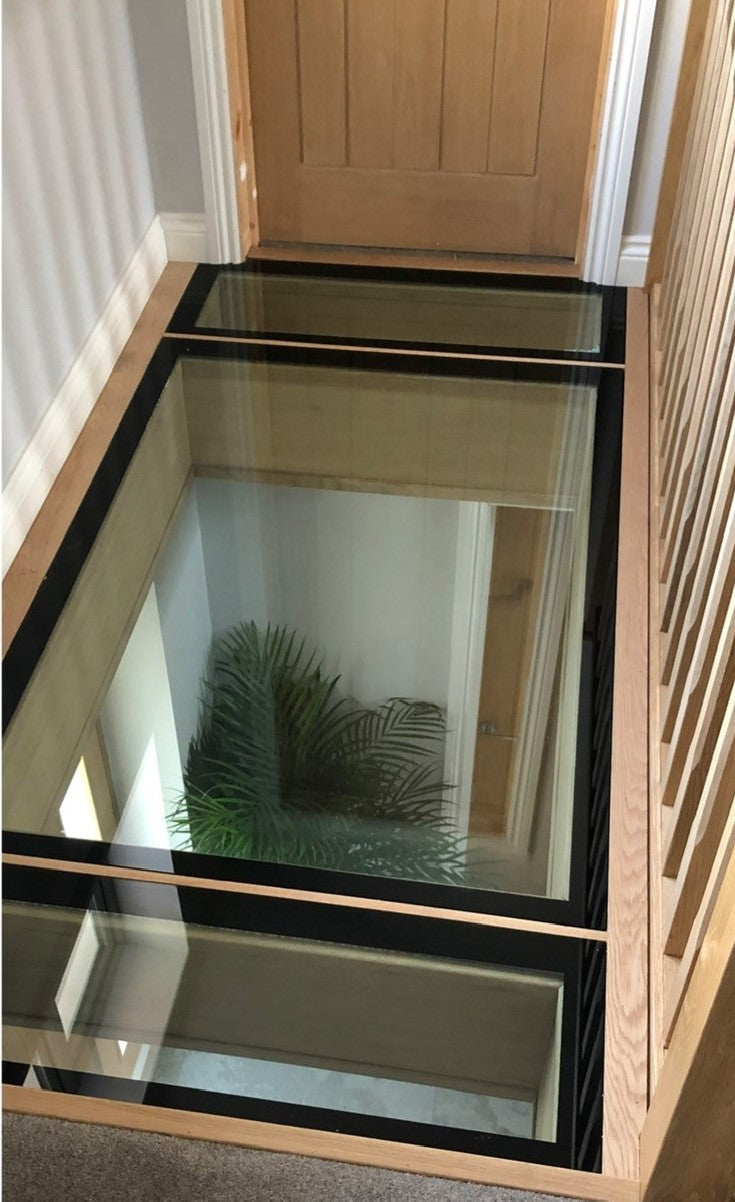

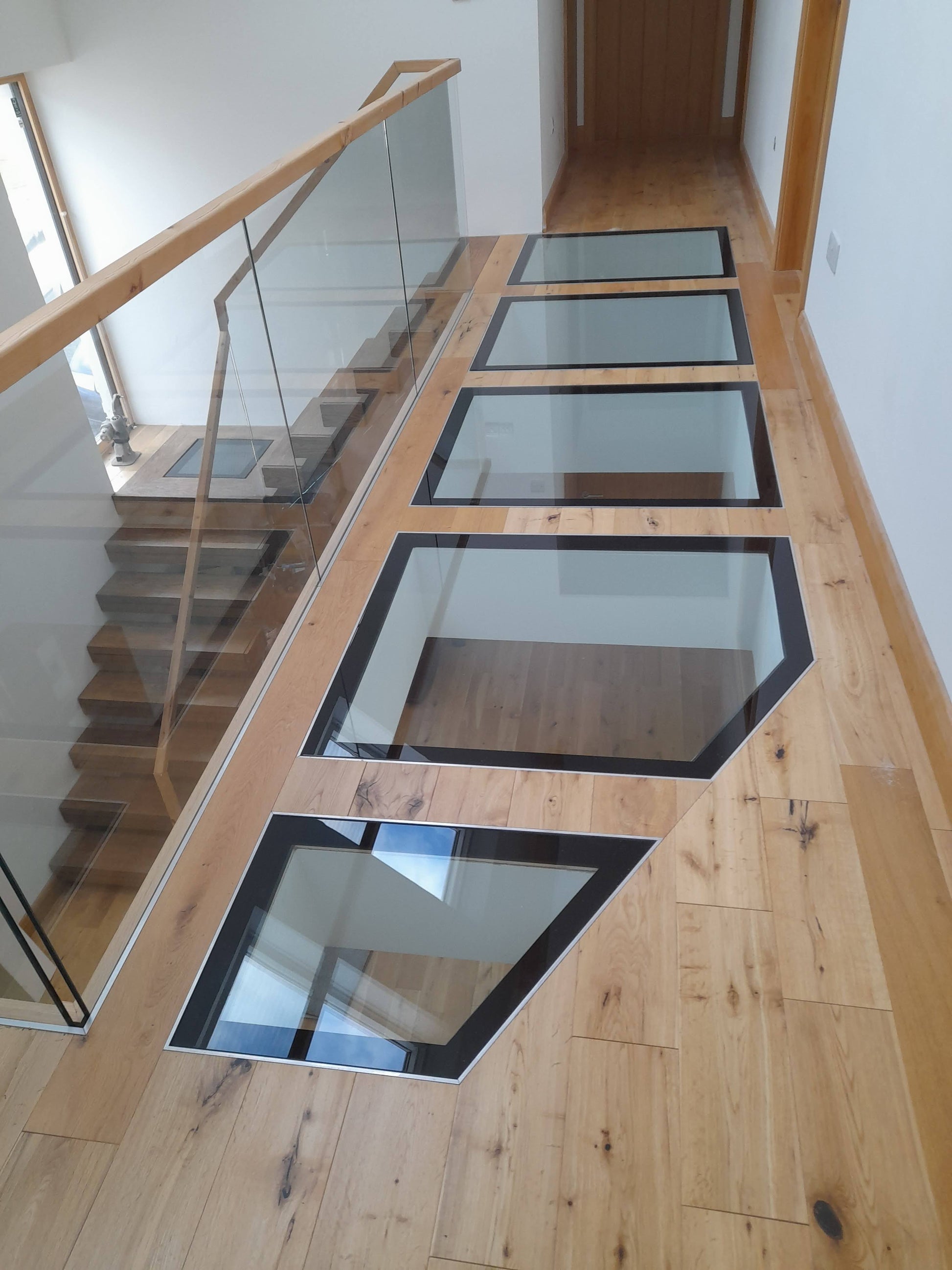

  • landing internal staircase glass flooring walk on panels

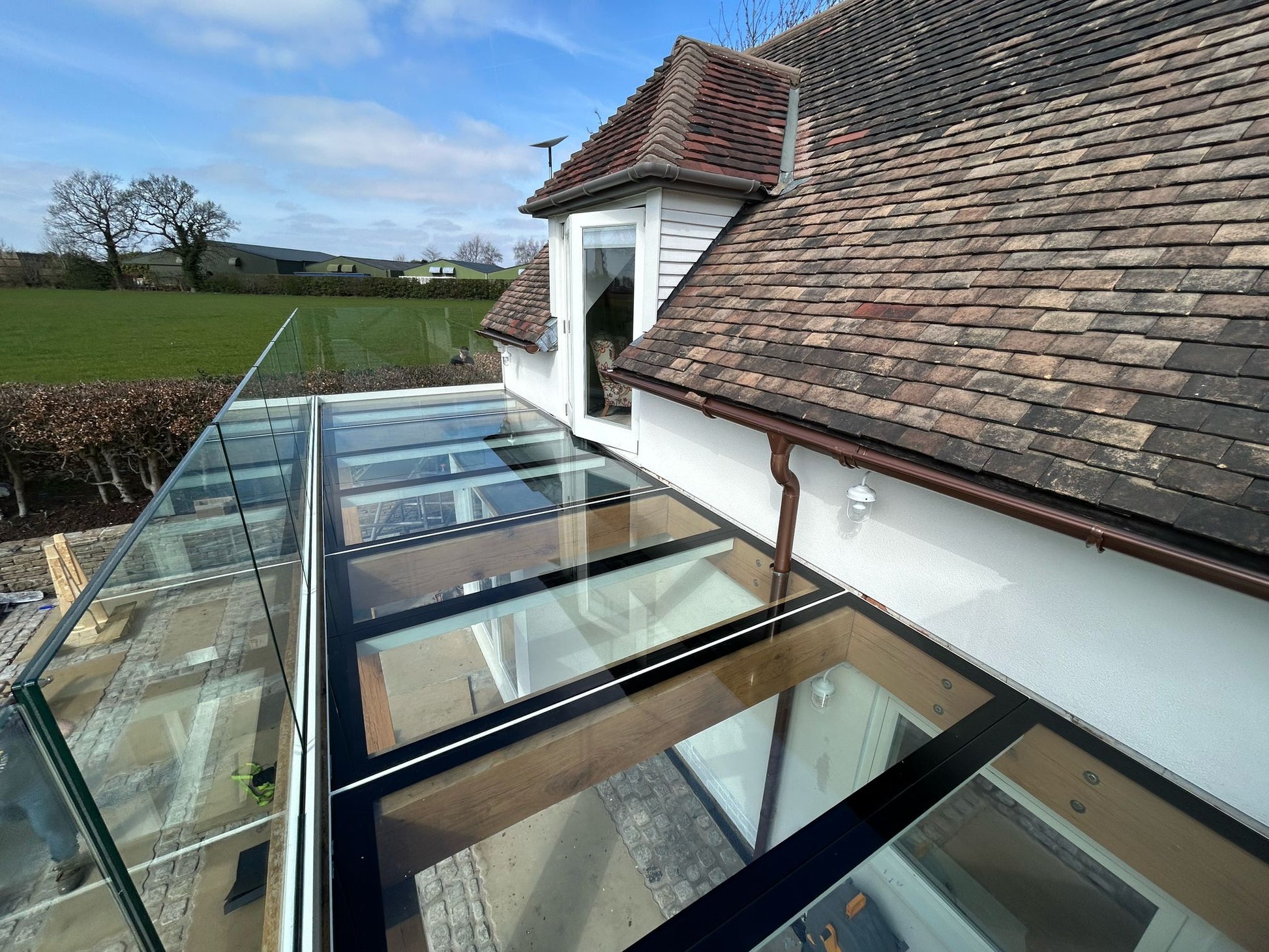

  • external walk on floor glass on balcony non slip treated

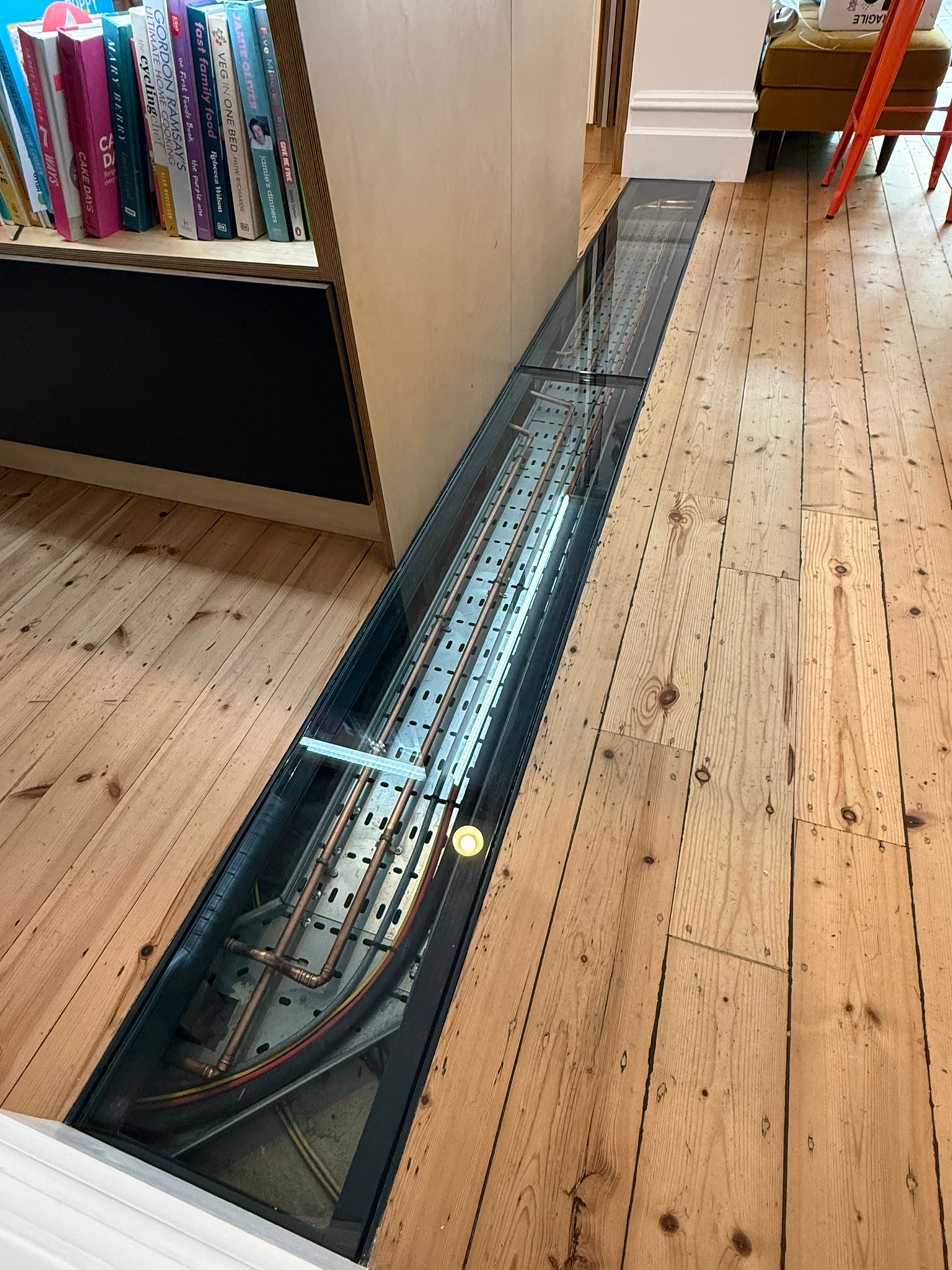

  • glass floor in kitchen setting
  • custom walk on glass floor panels black trim

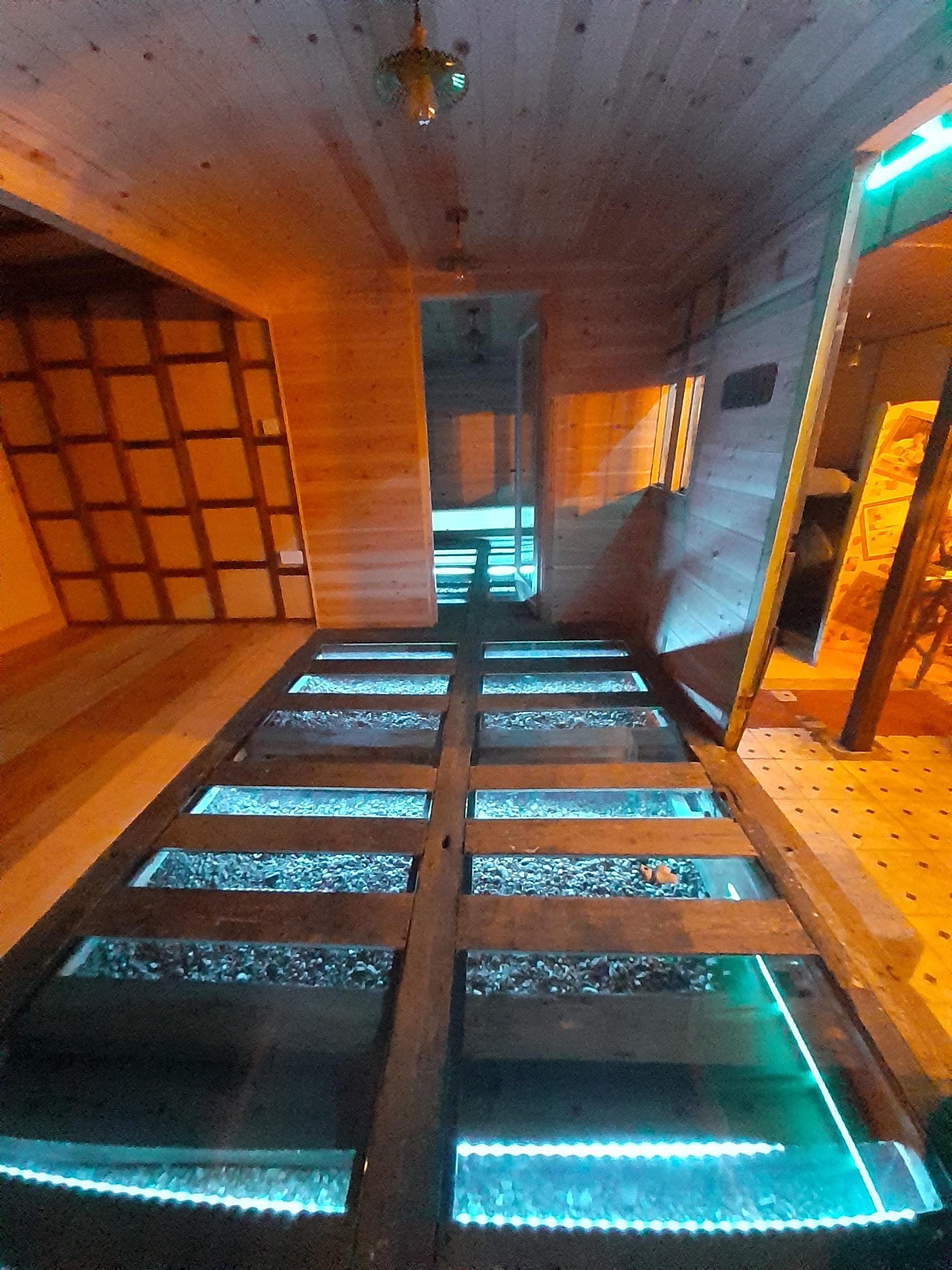

  • unique glass floor panels in lodge
1 7

Glass Floor Systems

Glass Panels & Steel Frameworks | Custom Walk-On Glass UK | Glass Floor Systems

Glass Panels & Steel Frameworks | Custom Walk-On Glass UK | Glass Floor Systems

£500.00 GBP
£500.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size
Thickness
Treatments
Improve your space with our glass flooring panels and steel support frameworks from Glass Floor Systems, a versatile alternative to our wine cellar doors and glass well covers, perfect for creating unique flooring features.
Available in two primary thicknesses—25.5mm (two 12mm panes) or 33mm (three 10mm panes)—these panels are produced to your specified dimensions in square or rectangular shapes. Each unit features a resilient 50mm black painted border, sandwiched between laminate layers to hide sealants and withstand wear.
Every panel comes with a sturdy steel support framework—35mm deep for sizes up to 1000mm span, or 40mm deep for up to 1500mm span (smaller of the two dimensions)—designed to rest over your opening, enabling flooring to meet the edge for a secure, removable setup without needing floor replacement. For those without the required floor build up, get in touch for a custom framework quote to meet your needs.
Our steel support frameworks comply with UKCA-certified BS EN 1090 standards and are sold at your preference as either powder coated for dry interiors, galvanized for moist or external use, or both where required.
Enhance safety with our invisible anti-slip coating (PTV 68, exceeding the 36+ industry standard), providing 5-year slip resistance in dry conditions
These glass floor panels support a minimum of 1.5kN/m² uniform and 2.0kN concentrated loads per BS EN 1991-1-1:2002—consult a structural engineer for specific guidance if unsure.
Shop now at glassfloorsystems.co.uk! Note that a frosted border option is available upon request at no extra cost. We provide size bands for online ordering, but each panel is made to your exact dimensions. A pre-manufacture drawing will be supplied with every order to confirm perfect fitment.
