Choosing the Right Gas Strut Configuration for a Hinged Glass Floor Hatch

A hinged glass floor hatch has to satisfy two demands that pull in opposite directions. Closed, it needs to sit flush with the surrounding floor and behave like any other part of it. Open, it needs to lift cleanly, hold itself up without being propped, and come back down under control. The component that reconciles those two jobs is the gas strut, and although it is rarely the part anyone notices, its configuration does more than almost anything else to determine how a finished hatch feels to use. Every project is different, and the right arrangement depends entirely on the individual panel, opening and setting, so what follows is general background rather than a specification anyone should apply to their own hatch.

What a Gas Strut Is Actually Doing

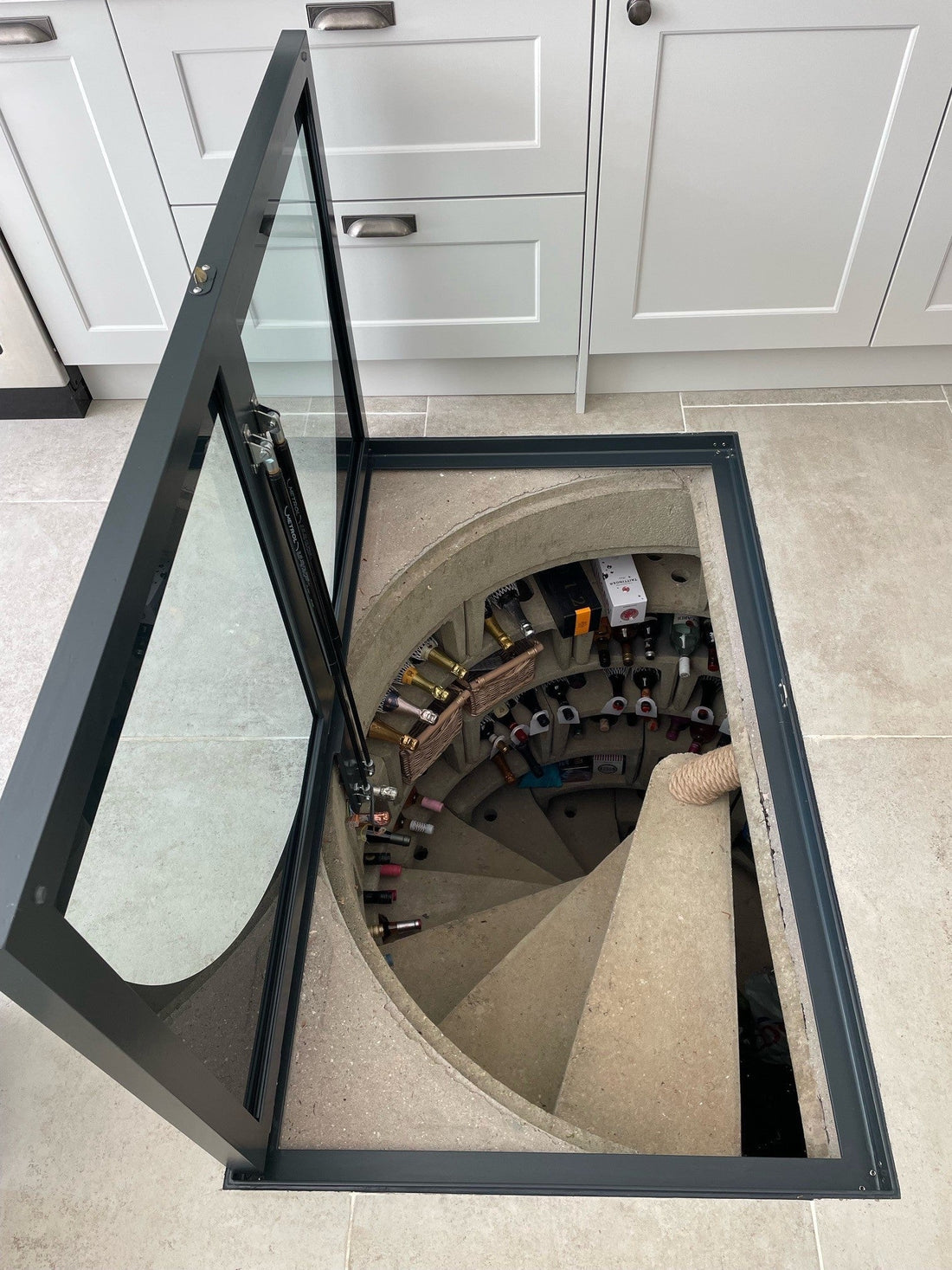

A gas strut is a sealed cylinder containing pressurised gas and a small volume of oil, with a rod that extends as the gas pushes against a piston. Fitted to a hinged glass floor door, it works as a counterbalance: it stores energy when the hatch is closed and releases it as the panel is lifted, offsetting a large share of the weight so that the person opening it is not taking the full load themselves. The oil provides damping towards the end of the stroke, which is what gives a well set-up hatch its characteristic slow, settled finish rather than an abrupt stop.

Two things follow from that description. The first is that a strut is not a lock or a safety catch — it is a lifting aid, and hatches are usually designed with separate provision for holding the panel securely in position and for controlling access. The second is that strut behaviour is not linear. The force a strut exerts changes across its stroke, and the leverage it has over the panel changes as the hatch rotates, so the specification is always a question of how those two curves interact rather than a simple matter of matching one number to another.

Panel Size and Weight Set the Starting Point

Structural glass is heavy. A walk-on panel is typically a laminated build-up designed to carry foot traffic, and its thickness is determined for each project by a structural engineer working from the span, the anticipated loading and the way the panel is supported. Add a steel or stainless frame and a set of hinges, and the assembly that has to be lifted can weigh a great deal more than people expect from looking at it. This is the single biggest reason that a hatch which would be unmanageable as a bare panel becomes straightforward once it is properly counterbalanced.

Because the weight varies so widely between projects, gas strut specification depends on panel size, weight and the geometry of the opening, and is worked out case by case rather than taken from a chart. A modest square hatch over a set of cellar steps and a large rectangular hinged glass wine cellar door serving a full basement room sit at very different points on that scale, and each may call for a different number of struts as well as a different force rating.

It is also worth saying that under-specifying and over-specifying both cause problems, just different ones. A strut arrangement with too little assistance leaves a hatch that is heavy to start moving and tiring to hold. One with too much tends to make the panel feel eager — it can want to rise on its own and can resist being closed. The aim in practice is a hatch that stays put where it is left, lifts with light steady effort and returns without drama.

Hinge Position, Opening Angle and the Arc of Travel

Where the hinges sit relative to the strut mounting points matters as much as the raw weight. A strut positioned close to the hinge line has very little mechanical advantage and has to work hard; one mounted further out has more leverage but needs more room to extend and may be more visible when the hatch is open. Getting the mounting geometry right is a large part of what makes a finished hatch feel balanced through its whole travel rather than only at the top or the bottom of the arc.

The intended opening angle feeds into this too. A hatch that only needs to swing back far enough to clear a stair opening has different requirements from one that is designed to open to near vertical and stand clear of the floor. Shape complicates matters further: circular and semi-circular cellar doors distribute their weight quite differently from rectangular panels, and the hinge and strut layout has to account for that rather than being borrowed from a square hatch of similar area.

Headroom above the hatch and clearance around it are practical constraints that are easy to overlook at design stage and expensive to discover later. A panel that opens into the underside of a worktop, a wall-mounted cupboard or a low ceiling is a problem no strut configuration can solve, which is why the opening arc is generally worked through alongside the surrounding joinery rather than after it. Our installation guide covers some of the wider considerations that sit around this.

How the Hatch Will Be Used

Two hatches of identical size can warrant different arrangements depending on who opens them and how often. A cellar door that is opened once or twice a week by one adult is a different proposition from a hatch in a busy commercial setting that sees constant use, or from one in a household where it may need to be operated single-handed while someone is carrying something down the steps.

Frequency also affects expectations over time. Gas struts are consumable components — the gas pressure inside them reduces gradually across their service life, and most manufacturers treat them as items to be checked periodically and replaced when their performance drops off, in much the same way as the struts on a car tailgate. A hatch that is noticeably heavier to lift than it used to be, or that no longer holds itself open reliably, is generally telling you the struts are due attention rather than that anything is wrong with the glass or the frame.

Where a panel is very large, where access needs to be possible with both hands full, or where users may have limited strength or mobility, a manual arrangement may not be the best answer at all. In those cases an electric hinged glass floor door is often considered instead, with electric systems specified per project based on the size and weight of the glass panel. The right choice tends to emerge from how the hatch will actually be lived with, not from the specification sheet alone.
