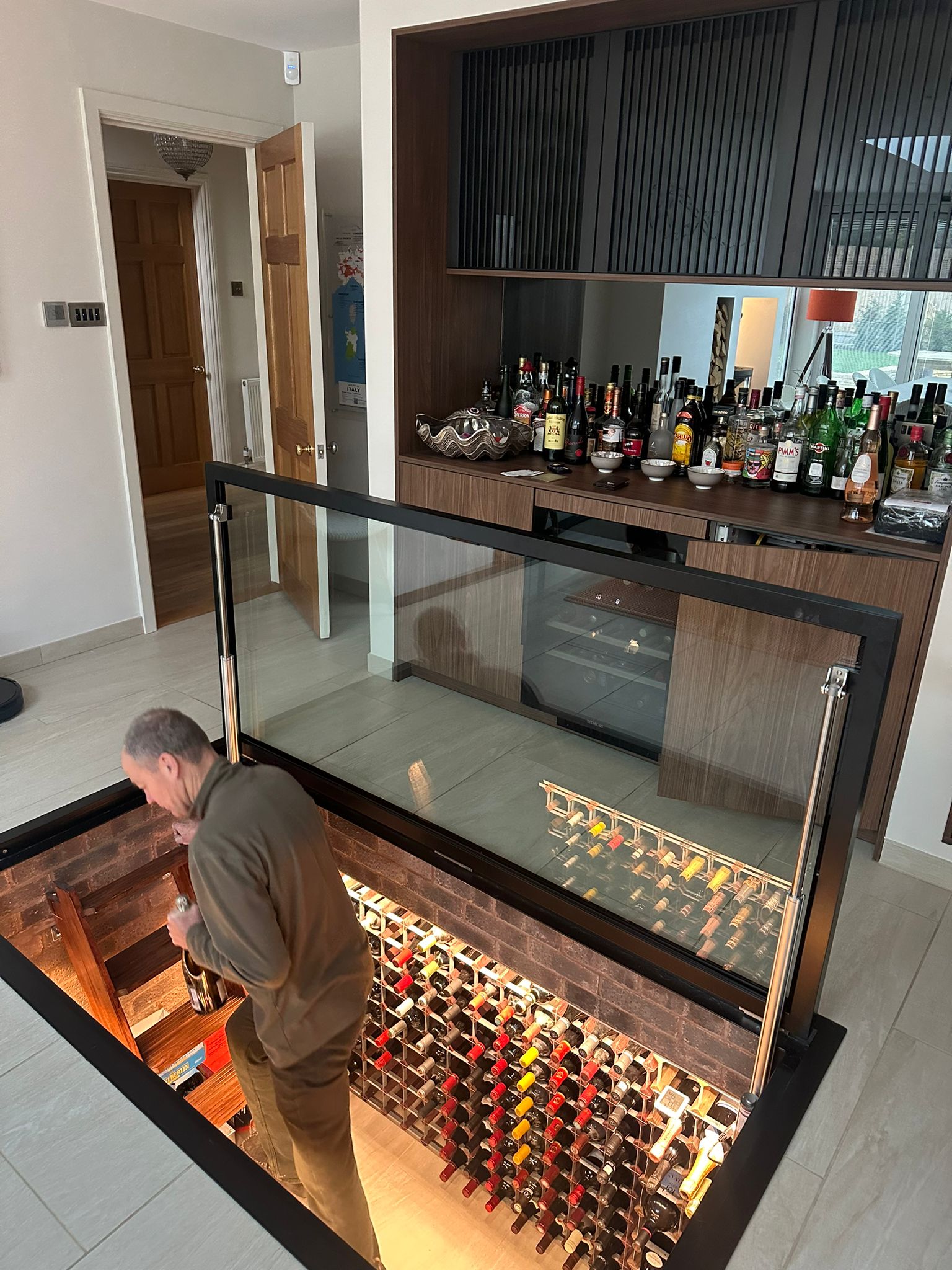

• Electric hinged glass wine cellar door open revealing illuminated underground wine cellar, motorized walk-on glass floor hatch with steel frame, UK-made automatic cellar door

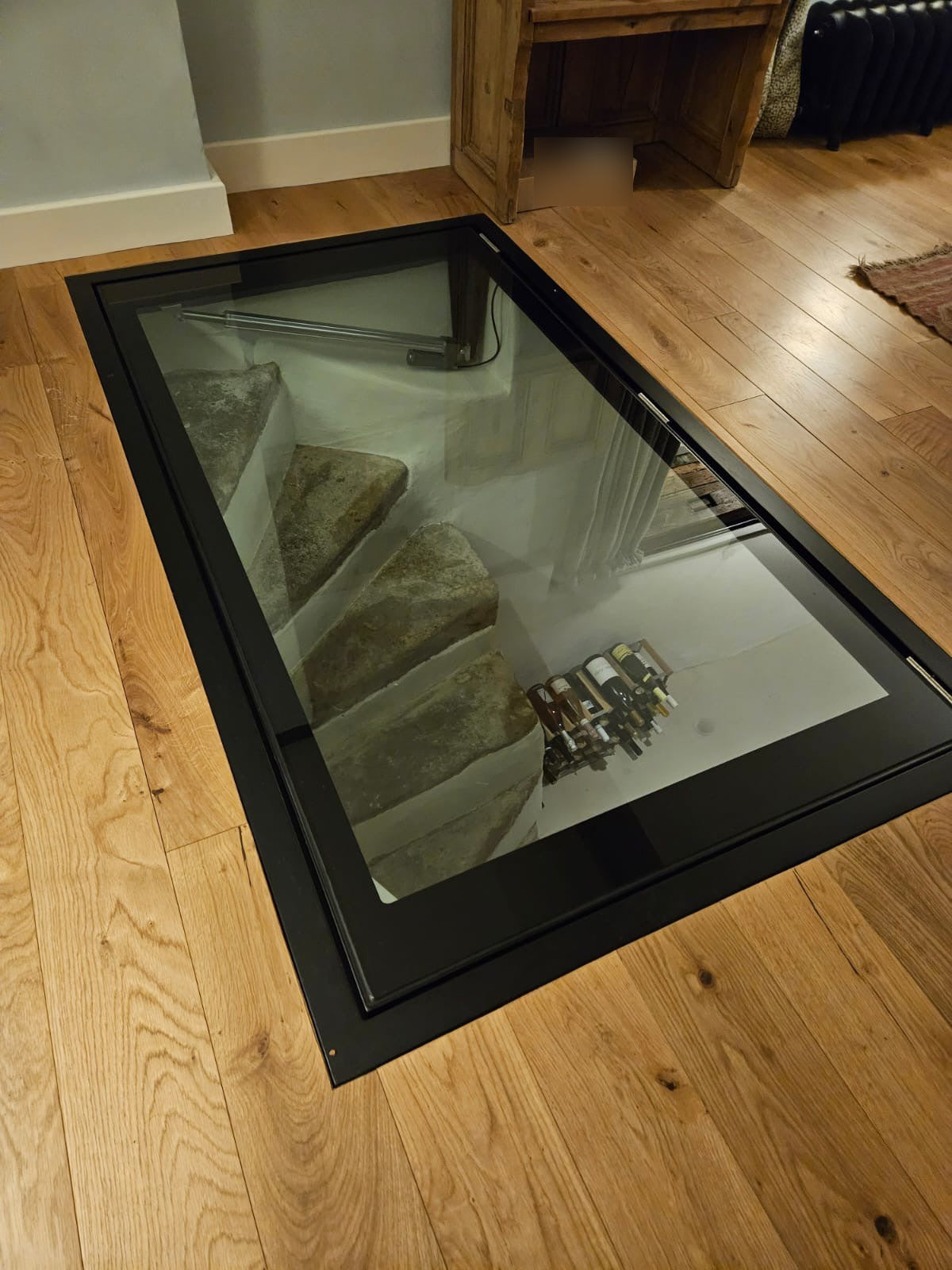

  • Motorised electric glass floor hatch closed flush in oak flooring, walk-on toughened glass panel revealing stone spiral staircase to wine cellar below, UK-made automatic floor hatch

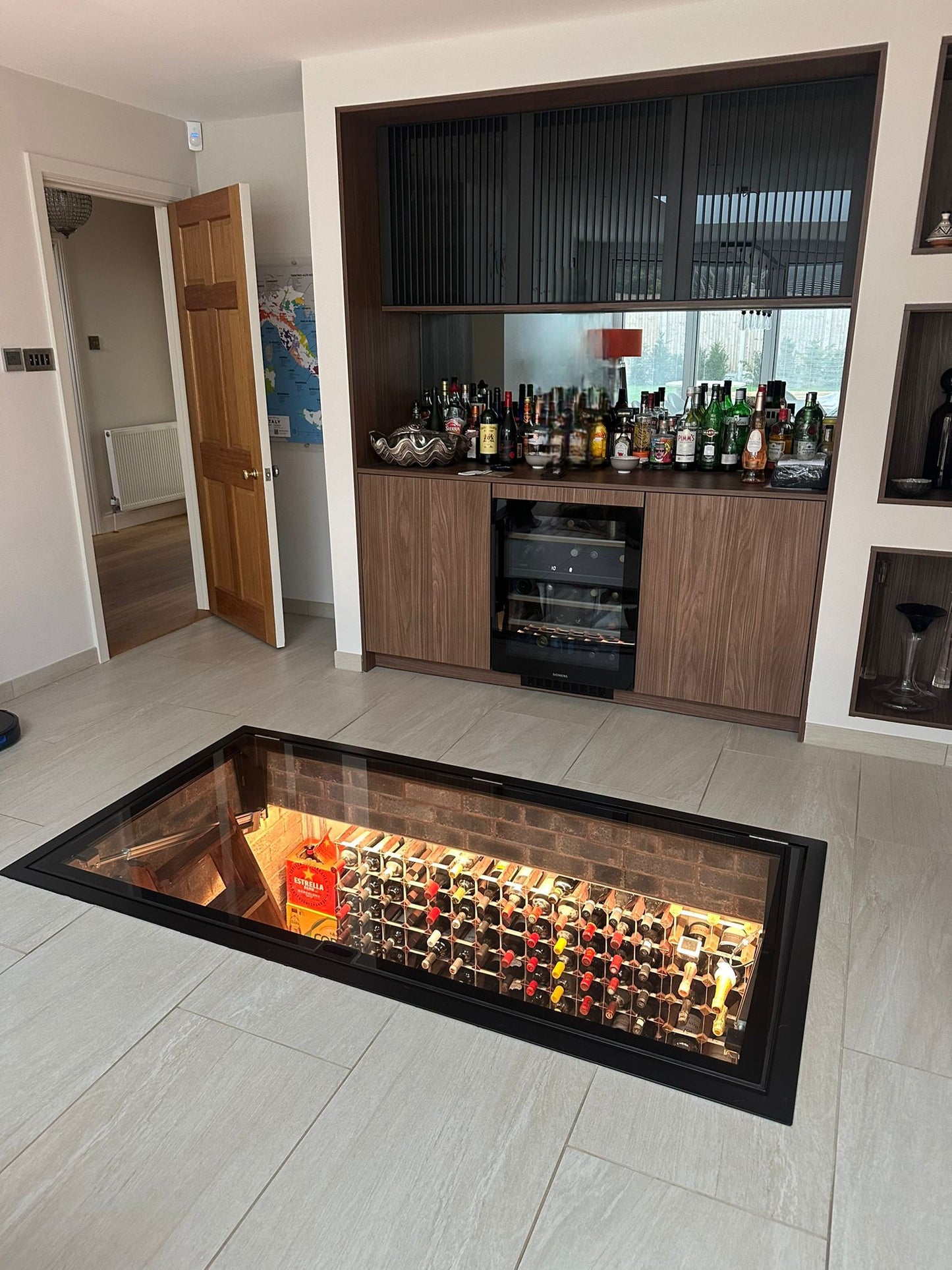

  • Remote control electric glass floor hatch closed in tiled home bar room, walk-on toughened glass wine cellar door showing illuminated underground wine collection, UK bespoke

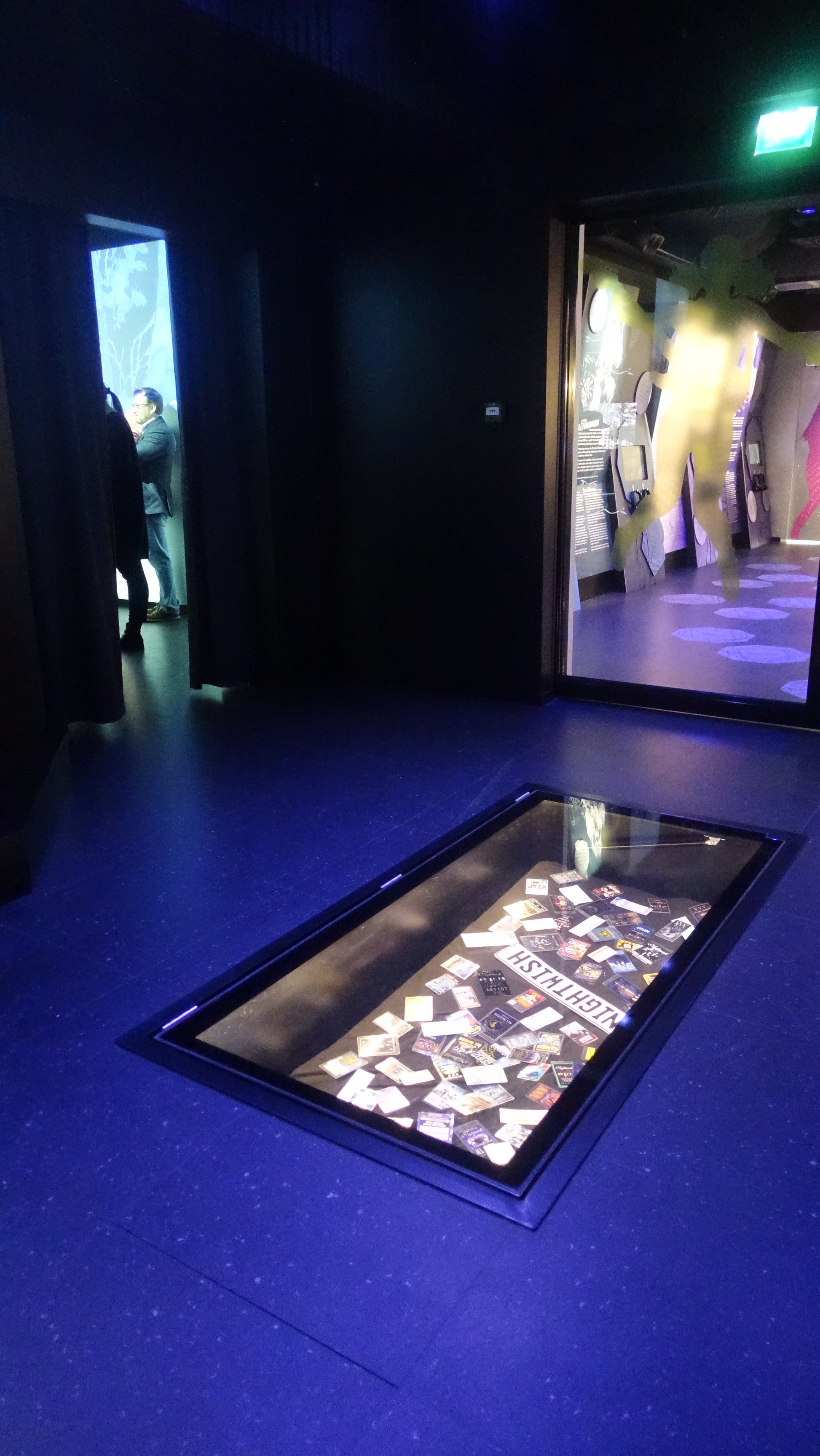

  • Electric glass floor hatch installed in a commercial venue with atmospheric blue lighting, bespoke motorised walk-on glass door covering underground storage, UK-made glass floor hatch

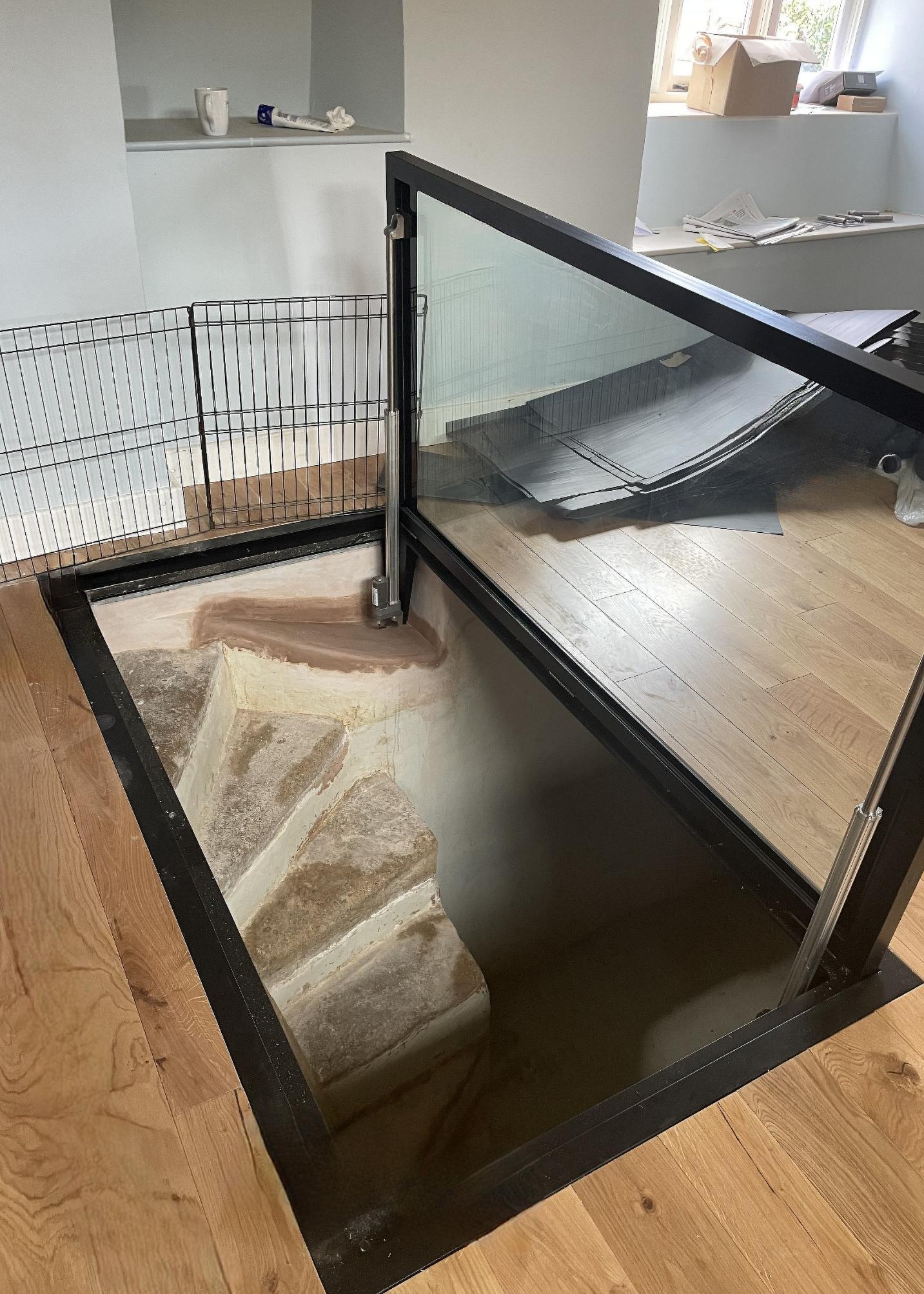

  • Motorised electric glass wine cellar door open showing linear actuator mechanism and stone staircase below, automated walk-on glass floor hatch in oak flooring, UK-made bespoke cellar door

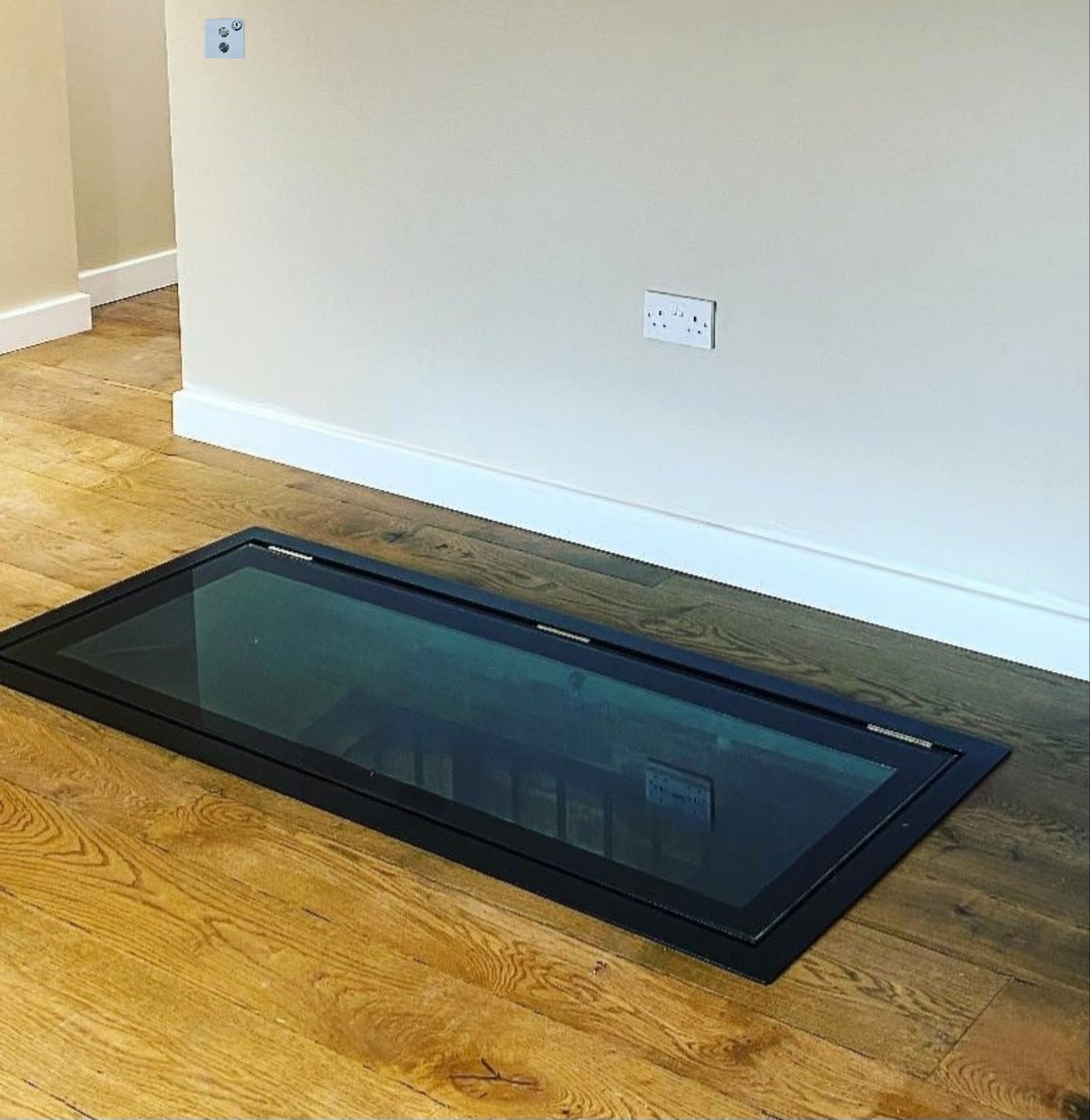

  • Motorised hinged glass wine cellar door closed flush in oak wood flooring with wall switch control, bespoke electric walk-on glass floor hatch, UK-made automated cellar access
1 6

Glass Floor Systems

Electric Hinged Wine Cellar Door | Motorized Glass Floor Hatch UK | Glass Floor Systems

Electric Hinged Wine Cellar Door | Motorized Glass Floor Hatch UK | Glass Floor Systems

£3,350.00 GBP
£3,350.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size
Electrics

Electric Hinged Glass Floor Hatch & Wine Cellar Door

Our electric glass floor hatch brings hands-free convenience to the elegance of a walk-on glass cellar door. With a concealed electric motor and discreet wiring, the hatch opens and closes smoothly at the touch of a wall switch or remote control — no effort required, regardless of the size or weight of the glass.

UK-made to order in our Sheffield workshop, each unit arrives as a complete, fully assembled system: frame, glass panel, motor, and control electronics pre-fitted and ready to drop into your structural opening. Your electrician makes the final connection to your mains supply.

How It Works

The electric mechanism replaces the gas-strut system used in our manual hatches. A compact motor is integrated into the frame and connected to a simple control box. Operate it via a discreet wall switch or wireless remote — the hatch lifts smoothly, holds open while you access the space below, then closes on command. A safety cutout prevents operation if something obstructs the opening.

Specification

  • Glass — 25.5mm toughened laminated safety glass as standard; 33mm available for higher load requirements or larger spans
  • Frame — Powder-coated steel, certified to BS 1090-2
  • Load rating — Tested to a 2.0kN concentrated load and 1.5kN/m² uniform load, meeting UK building regulations for domestic floor loading (BS EN 1991-1-1)
  • Operation — Electric motor with wall switch and wireless remote; safety cutout included
  • Anti-slip finish — Optional; tested to PTV 36+
  • Colour — Standard black powder coat; other RAL colours available on request
  • Sizes — Standard rectangular sizes available to order; bespoke sizes made to order
  • Lead time — Approximately 10–12 weeks from order confirmation

Sizing & Ordering

Standard rectangular sizes are available to purchase directly from this page. For a custom size, unusual shape, or multi-panel configuration, contact us for a quote. We’ll confirm exact frame dimensions before manufacture begins.
