Electric Glass Floor Doors: How Motorised Hatches Work

How motorised glass floor doors work

An electric glass floor door is a hinged glass hatch fitted with a powered actuator in place of a gas strut or a manual lift. Press the control and the actuator raises the panel on its hinge line, holds it open while the space below is in use, and lowers it back into the frame under control.

The glass is 25.5mm toughened and laminated as standard, sitting in a steel framework manufactured under UKCA certification to BS EN 1090-2. Closed, the panel is a working floor rated to 150kg/m² distributed load plus a 2.0kN concentrated load, in line with BS EN 1991-1-1. It is not a lid over an opening — it is a floor that happens to open.

There is no standard motor. The actuator is sized for each installation against the weight of the glass, the dimensions of the panel, the geometry of the opening and how the hatch needs to sit when closed. A 900mm square panel and a 2200mm panel are different mechanical problems, and specifying one motor for both would give you a hatch that either strains or slams.

Operation is by wall switch, key switch or remote. Our electric hinged wine cellar door is the standard version of this: a genuine walk-on floor when closed, self-opening when needed.

Sizes, lead times and what the frame takes up

Electric units are made to 2300 × 1100mm in a single panel. Manual gas-strut units go to 2000 × 1000mm. Above those sizes we split the opening into multiple panels, with the motorised leaf giving access and fixed glass making up the rest of the floor.

Lead time is 10–12 weeks for electric and 6–8 weeks for manual, from approved drawings. Nothing is held in stock — every floor is made to order.

One point that catches people out at design stage: the frame takes up 100mm or more of the finished hole size. If you have a 1000mm structural opening, your clear access is meaningfully less than 1000mm. Work from the clear access dimension you need and let the opening follow, not the other way round.

When an electric door makes sense over a manual one

Not every project needs a motor. A gas-strut hinged hatch is the right answer for smaller openings and spaces you enter occasionally, and it costs considerably less. The gas strut mechanism does most of the lifting work on panels up to around a square metre.

Three things push a project towards electric:

Weight. Laminated walk-on glass is heavy. As the panel grows, the lifting force needed grows with it, and there is a point past which a strut-assisted lift stops being pleasant and starts being a two-handed effort.

Frequency. A hatch in a kitchen island or a hallway that gets opened daily is a different proposition from a cellar entered twice a month. A hatch that is hard to open stops being used.

Who opens it. Powered operation makes a below-floor room usable by people who cannot safely lift a heavy glass panel. That is often the deciding factor rather than a convenience.

There is also a design argument. Because the mechanism does the lifting, an electric door can be specified for openings where a manual lift would be impractical, which gives more freedom over where the access point sits in a room.

Safety, and what an electric hatch will not do

Motorised units are supplied with obstacle detection that pauses or reverses the panel, soft-close so it cannot slam, and controlled operation through a key or coded switch. A UPS backup is fitted as standard, so a power cut during use does not leave the panel stranded.

Two limitations are worth stating plainly, because they affect how the opening should be designed.

An electric glass floor door is not an emergency exit. A motorised panel takes around 40 seconds to open. Nothing about that is suitable as a means of escape, and a glass floor hatch should not be the primary access to a habitable room. The space below needs a secondary means of escape, and the risk assessment for that sits with the client and their building control officer.

The open panel is a hole in your floor. A hinged hatch cannot provide its own guarding — a continuous staircase handrail cannot pass through a closed floor, which is why these units are honest about sitting outside full Building Regulations compliance for stair access. Where guarding is needed we can supply a balustrade alongside the hatch, but always as a separate product, never integral to it. Many clients specify the door to open away from a wall so the raised leaf itself guards one side of the opening while it is in use.

On slip resistance, our invisible anti-slip treatment achieves a Pendulum Test Value of 68 and lasts around five years without affecting clarity. That figure matters more on external installations and anywhere the glass gets wet.

Electrical work and building control

An electric hatch combines glazing, structural steelwork and a powered mechanism, and the electrical side needs a qualified electrician working to current wiring regulations. Depending on where the unit sits and what circuit it runs from, the work may be notifiable to building control. That is worth establishing early rather than at second fix.

We supply the unit fully assembled and pre-wired with a plug-and-play control box. The installation guide covers handling, the perimeter gap and the sequence, but the structural opening itself is prepared by others — we do not advise on the construction of the opening.

Smart home integration

Control can be extended beyond the supplied switch. Where a property already runs a home automation system, the hatch can be wired into it so the door operates from the same interface as lighting and blinds, or opens as part of a scene. Feature lighting under the glass is commonly switched the same way, which turns the panel into a window as well as a door.

This needs deciding before manufacture rather than afterwards, since it affects how the control box is specified.

Living with an electric glass floor door

Done well, the hatch is unremarkable day to day — a transparent floor that reads as part of the surrounding finish, opens on demand and closes flush. The mechanism needs periodic attention: a visual check of the actuator, hinges, seals and controls, and an annual inspection by a competent firm. Parts are serviceable and replaceable over the life of the installation.

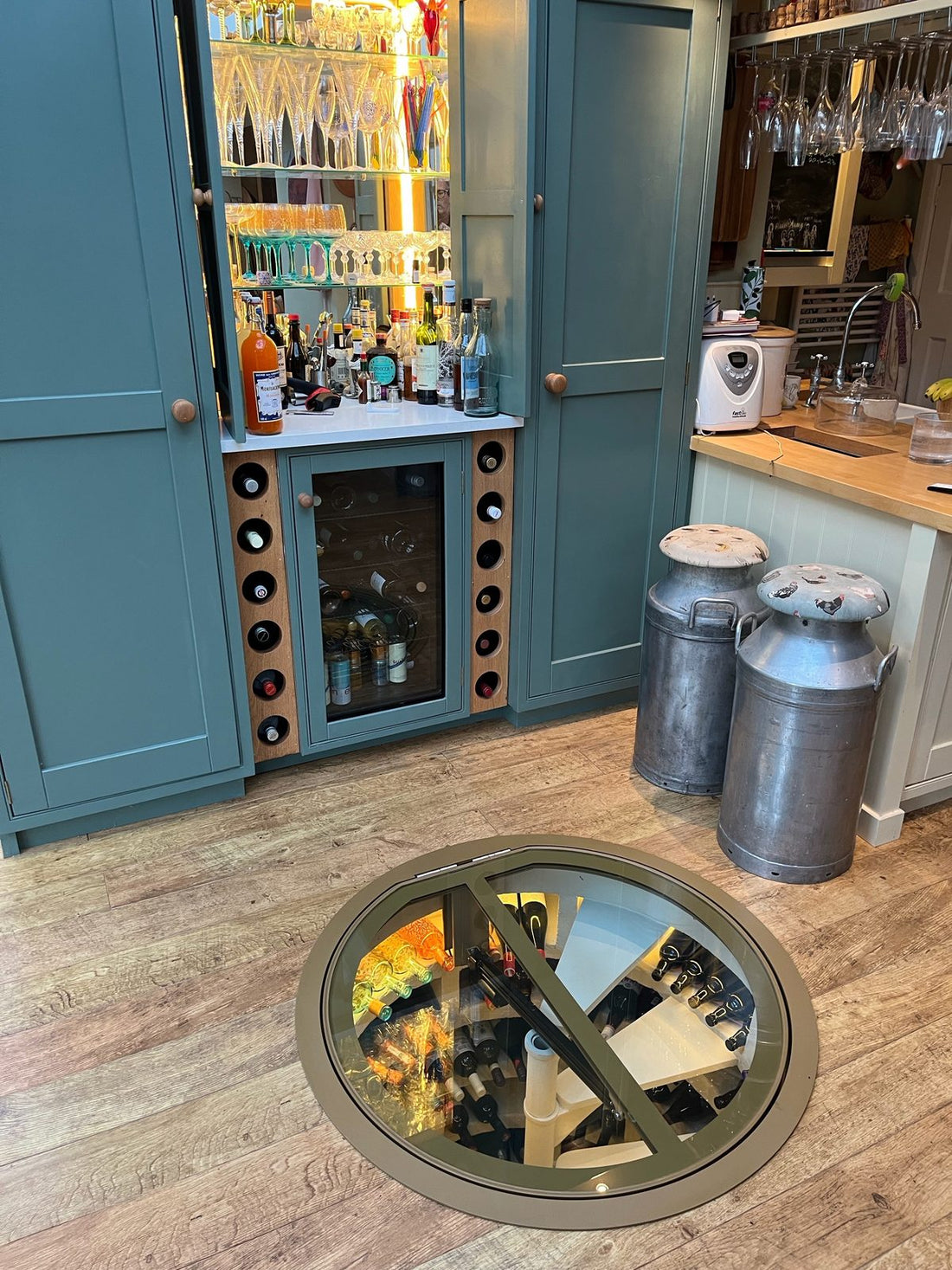

For a wine cellar the combination is hard to beat — a sealed room below a floor that still reads as a continuous surface, with access that opens at a touch. For larger or higher-specification installations, our guide to automated glass access for underfloor wine cellars covers multi-panel layouts and the glass specification for bigger openings.
